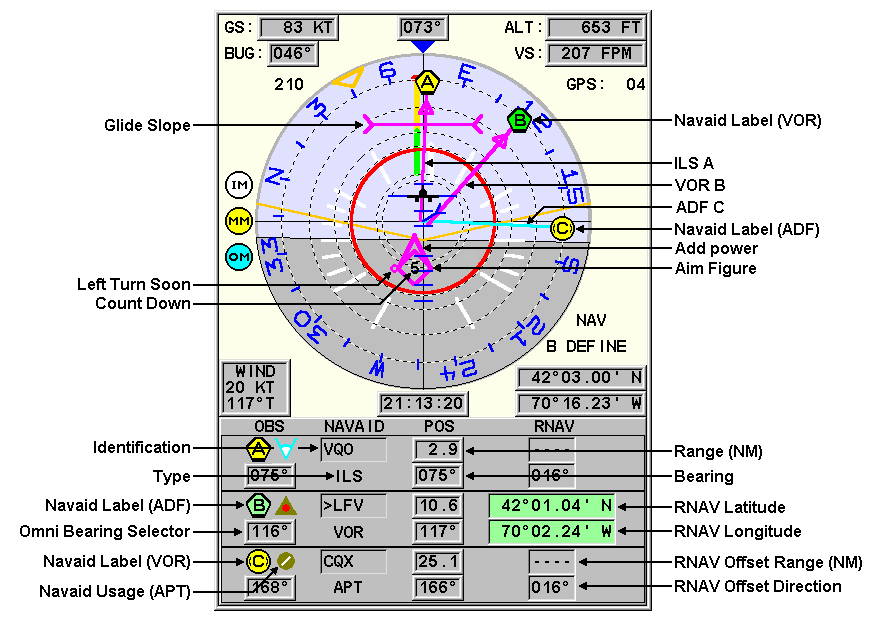

Navigational Aids

Navigational aids may be off, direct, or full as indicated by vertical bar next to letter

To-From arrow shown on vector

ILS may be actual (as shown below) or virtual (indicated by nearest runway number)

When virtual ILS selected, virtual markers are also provided

Navaids are usually selected from list sequenced from nearest aid of specified type

However, the pilot may also choose from an alphabetical list on a letter by letter basis

RNAV locations are generated by setting Range-Bearing or Lat-Lon.

Original navaid remains available in the list for selection

RNAV deleted by setting its Range to zero

Selection knobs are speed sensitive to traverse long lists or values quickly.
