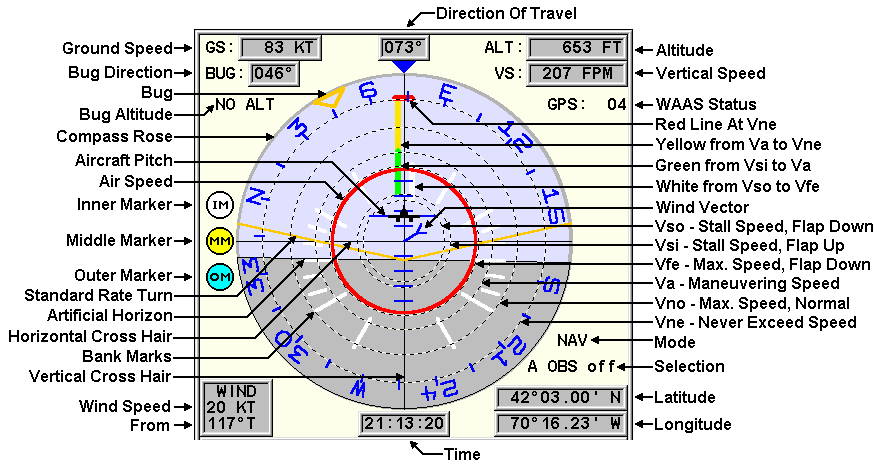

Attitude Indicator

Data in upper 2/3 of screen always displayed

Text window on bottom (from OBS down) may be switched to other displays

Horizon (gray half circle) to airplane figure is pitch of aircraft

Horizon to crosshairs is inclination of glide path

Red circle is aircraft speed. Dashed circles are critical speeds.
